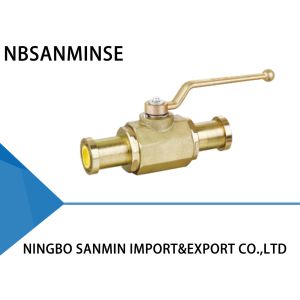

KHB KHM Shut Off Hydraulic Ball Valve Carbon Steel 16mm 20mm 25mm
Diameter With SAE Flange

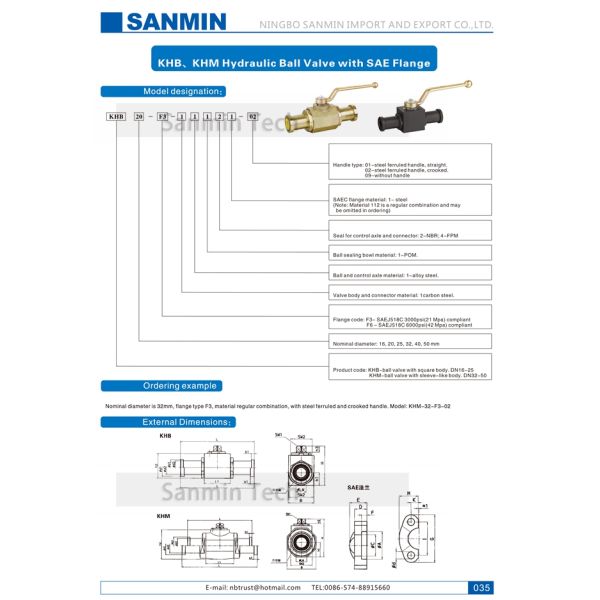

Model Designation
1 . Handle type: 01-steel ferruled handle, straight.
02-steel ferruled handle, crooked.
09-without handle
2 . SAE flange material: 1- steel
3 . Seal for control axle and connector: 2-NBR; 4-FPM
4 . Ball sealing bowl material: 1-POM.
5 . Ball and control axle material: 1-alloy steel.
6 . Valve body and connector material: 1-carbon steel.
7 . Flange code: F3- SAEJ518C 3000psi(21 Mpa)
F6 - SAEJ518C 6000psi(42 Mpa)
8 . Nominal diameter: 16, 20, 25, 32, 40, 50 mm
9 . Product code: KHB-ball valve with square body. DN16-25
KHM-ball valve with round. DN32-50
Ordering Example
Nominal diameter is 32mm , Flange type F3 , Material regular
combination , With steel ferruled and crooked handle . Model : KHM
- 32 - F3 - 02
Carbon Steel with Zinc Plating
316 stainless steel available from stock.
Unrestricted bore up to 2" size.
Optional seal materials available for extreme temperature
applications & fluid compatibility
Why choose us
1: Various style for each products and completely series pneumatic
products .
2: Large stock for fast shipping .
3: Customize according to your special request .
4: Provide free products information .
5: Reliable quality assured and active after-sell service
6: One year quality guarantee
